Condition:
New
Type:
Horizontal
Max. Length Of Workpiece (mm):
300
Structure:
Slant Bed Lathe
Max. Spindle Speed (r.p.m):
3500 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
66
Width Of Bed (mm):
0 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Max. Turned Length (mm):
300
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Travel (Z Axis)(mm):
300 Mm
Repeatability (X/Y/Z) (mm):
±0.003
Dimension(L*W*H):
2500*1620*1890mm
Model Number:
TCK500
Voltage:
380V, 220V, 415V
CNC Control System:
Siemens
Tool Post Stations:
12, 8, 4
Weight (KG):
3100
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Automatic
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox
Name:

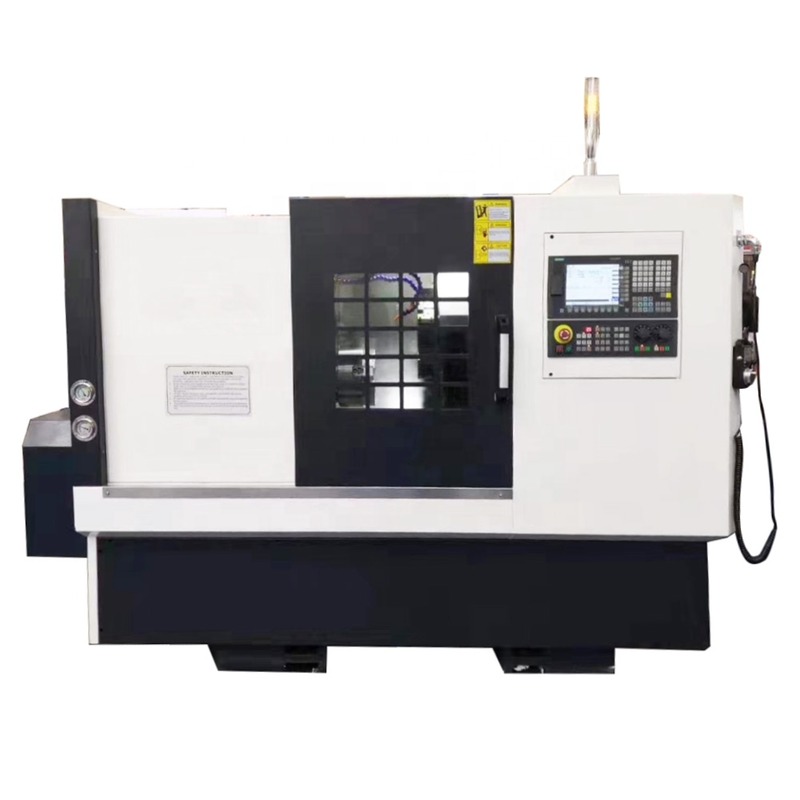

New Metal Slant Bed CNC Turning Lathe Machine
Spindle Bore:
66mm
Max.swing Over Bed:
520mm
Max.swing Over Cross Slide:
220mm
Spindle Motor:
7.5kw
Cutting Tool Shape Size:
25*25mm
Spindle Motor:
Stepless Motor GSK Feed Motor And Driver
Chuck Size:
6 Inch
Turret Type:
12 Station Hydraulic Turret
Bed Type:
Slant Bed Cnc Lathe
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts
After Warranty Service:
Video Technical Support, Online Support, Spare Parts
Local Service Location:
None
Certification:
CE, ISO9001
