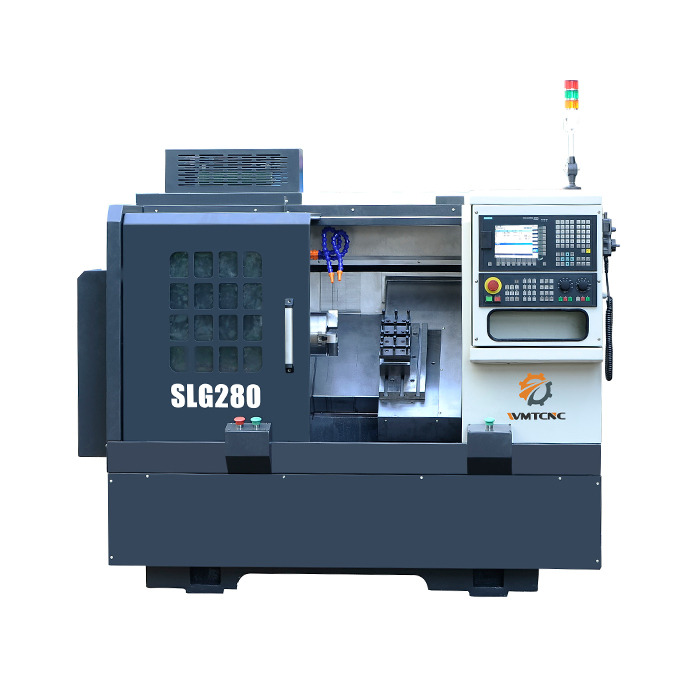

Home /Products/Slant CNC Lathe/SLG280 hot sales CNC Turning Lathes machine for metal

SLG280 hot sales CNC Turning Lathes machine for metal

1 Set
MOQ
$10,000.00(>=1 Sets)
Price
SLG280 hot sales CNC Turning Lathes machine for metal
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Year: 2021
Max. Length Of Workpiece (mm): 200 Mm
Structure: Slant Bed Lathe
Max. Spindle Speed (r.p.m): 3000 R.p.m
Machining Capacity: Medium Duty
Spindle Bore(mm): 48
Width Of Bed (mm): 300 Mm
Spindle Motor Power(kW): 3.7/5.5
No. Of Spindles: Single
Number Of Axes: 2
Travel (X Axis)(mm): 280 Mm
Travel (Z Axis)(mm): 240 Mm
Positioning Accuracy (mm): ±0.01
Repeatability (X/Y/Z) (mm): ±0.004
Dimension(L*W*H): 1750x1320x1500mm
Model Number: SLG280
Voltage: 220V/380V/400V
CNC Control System: GSK
Toolpost Brand: Hongda
Tool Post Stations: 12
Weight (KG): 2000
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works
Key Selling Points: High-accuracy
Showroom Location: Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Indonesia, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, Colombia, South Africa, Japan, Malaysia, Australia
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox
CNC Or Not: CNC
Automatic Grade: Automatic
Workpiece Length: 200mm
Spindle Bore: 48mm
Spindle Nose: A2-5
Machine Type: CNC Slant Bed Lathe
Main Power: 3.7/5.5kw
Hydraulic Chuck: 6"
Name: Metal Cnc Lathe
Function: Machining Metal
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Indonesia, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Argentina, South Korea, Chile, Colombia, South Africa
Certification: CE ISO9001
Basic Infomation
Certification: CE ISO9001
Model Number: SLG280
Payment & Shipping Terms
Packaging Details: Plywood case as exported standard
Supply Ability: 50 Set/Sets per Month
Product Description
CNC SLANT BED LATHE



Product Application

-35degree True slant bed bed structure, machine base and bed are one-piece casting, monoblock design; -HIWIN/PMI linear motion guideway; -PMI ballscrews; -Guideway&ballscrews are fully enclosed and protected; -Schneider electronic components; -Heat exchanger for electric cabinet; -Auto lubrication system; -Auto coolant system; -Tri-color warning light; -Foot pads;

Specifications
SLG280
Max.swing over bed
420mm
Max.swing over cross slide
140mm
Max.machining length
200mm
Spindle nose
A2-5
Spindle motor power
3.7/5.5kw
Max.spindle speed
3000rpm
Spindle bore
48mm
Drawing hole diameter
40mm
X-axis travel
280mm
Z-axis travel
240mm
Machine dimension(LxWxH)
1750x1320x1500mm
Net.weight
2000kgs
