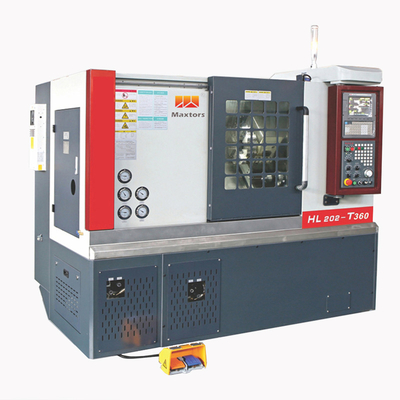

Maxtors Horizontal Slant Bed Turnmill CNC Turning Lathe Machine Center for Turning Milling With Live Turret Turn Mill Optional
| Unit | HL202-J360 | HL202-T360 | |
| Max swing dia.over bed | mm | Φ460 | Φ460 |
| Max.Turning Dia. | mm | Φ360 | Φ360 |
| Max.Workpiece Length | mm | 360 | 360 |
| Max.Cutting Dia. | mm | Φ200 | Φ200 |
| Max.Bar dia. | mm | Φ42 | Φ42 |
| Spindle Center to Floor | mm | 1100 | 1006 |
| Spindle Motor | KW | 5.5 | 5.5-7.5 |
| Spindle speed range | rpm | 4000 | 4000 |
| Spindle Thru-Hole Dia. | mm | Φ56 | Φ56 |
| Spindle Taper Hole(MT) | mm | MT 6# | MT 6# |
| Spindle Nose NO.(ISO) | A2-5 | A2-5 | |
| Travel(X/Z) | mm | 360/450 | 190/450 |
| Tool No. | Linear type | 8/10/12 | |
| Turning Tool Holder Type | 20×20 | 25×25 | |
| Tailstock Sleeve dia. | mm | / | Φ63 |
| Tailstock Sleeve Travel | mm | / | 80 |
| Tailstock Center(MT) | / | 4# | |
| Positioning accuracy(X/Z) | 0.008 | 0.008 | |
| Re-Positioning accuracy(X/Z) | 0.004 | 0.004 | |
| Total Power | KVA | 10 | 14 |
| Auto Chip Conveyor | Back Side | ||
| Machine Size(L×W×H) | mm | 2215×1607×1800 | |
| Machine Weight | KG | 3000 | 3300 |
| SYNTEC 21TA | Std. | Std. | |
More Related CNC Machines Recommendation
Send Inquiry to Maxtors Sales Engineers
Direct Ask Supplier of One-Step Turning & Milling Solutions
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is 1 set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, HEIDENHAIN,LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films. Others packing methods also available.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
If you still have any more FAQ, Please feel free to contact us directly.
