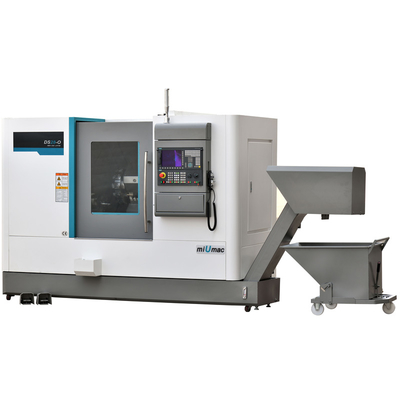

DS28-O Miscellaneous Machine Repair Shop Promotional Goods Using CNC Lathe Machine Price

1 Set
MOQ
$41,550.00(>=1 Sets)
Price
DS28-O Miscellaneous Machine Repair Shop Promotional Goods Using CNC Lathe Machine Price
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: TURNING CENTER
Max. Length Of Workpiece (mm): 520 Mm
Max. Spindle Speed (r.p.m): 5000 R.p.m
Machining Capacity: Medium Duty
Spindle Bore(mm): 65
Width Of Bed (mm): 500 Mm
Spindle Motor Power(kW): 11/15 KW
No. Of Spindles: Twin
Max. Turned Length (mm): 500
Number Of Axes: 2
Travel (X Axis)(mm): 255 Mm
Travel (Z Axis)(mm): 600 Mm
Dimension(L*W*H): 2880x 1850x2000 Mm
Model Number: DS28-O
Tool Post Stations: 2
Weight (KG): 4300
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Key Selling Points: Automatic
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, PLC
Max. Swing Over Bed: 520 Mm
Max. Cutting Dia. For Disc Parts: 420 Mm
Max. Cutting Dia. For Axle Parts: 250 Mm
Max. Cutting Length For Axle Parts: 500 Mm
Max. Travel Of X-axis: 255 Mm
Max. Travel Of Z-axis: 600mm
Spindle Bore: 65 Mm
Spindle Nose: A2-6
Machine Size: 2880x 1850x2000 Mm
Spindle Speed: 4000 Rpm/5000 Rpm (Sleeve Spindle)
Basic Infomation
Model Number: DS28-O
Payment & Shipping Terms
Packaging Details: angle cutting band saw machine Packed by plywood.
Product Description
Product Features
1. Aseismatic capability, high strength and good quality cast iron.
2. Main motor and spindle driven through wide-angle belt.
3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
Right elevation
Left elevation
Back elevation
ltems
DS28-O
Max.swing over bed
Φ520 mm
Max. cutting dia.for disc parts
Φ4420 mm
Max.cutting dia.for axle parts
Φ250 mm
Max. cutting length for axle parts
500 mm
Max.travel of X-axis
255 mm
Max.travel of Z-axis
600 mm
Spindle bore
Φ65 mm/Φ63mm (Sleeve spindle)
Spindle nose
A2-6
Spindle taper
Morse No.6/Φ70 Metric 1: 2 (Sleeve spindle)
Spindle speed
4000 rpm/5000 rpm (Sleeve spindle)
Hydraulic chuck size
8"
Rapid feed speed of X/Z
20/24 m/min
Linear guide ways wide of X/Y/Z
35/45 mm
Center distance of Zlead screws
370mm
Diameter and screw pitch of Xlead screws
Φ32×10 mm
Diameter and screw pitch ofZ lead screws
Φ40×10 mm
Tool post stations
12T
Outside dia.cutting tool shank
25×25 mm
Max.inner dia.cutting tool shank
Φ40 mm
External dia.of tailstock sleeve
Φ80 mm
Max.travel of tailstock sleeve
120 mm
Tailstock sleeve taper
Morse No.4
Power of main motor
11/15 kw
Bed structure
45 slant bed
Positioning accuracy of X/Z
≤0.010/0.012 mm
Repeated positioning accuracy of X/Z
≤0.003/0.005 mm
Power of coolant pump
180 W
Capacity of lubrication pump
2L
Overall dimensions(LxWxH)
2880×1850×2000 mm
Net weight
4300 kg
Taiwan 3-jaw hydraulic chuck
Taiwan hydraulic turret.
Hydraulic tailstock or programmable tailstock is optional.
Taiwan P-grade high precision linear guide ways.
Taiwan C3 grade precision ball screws.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto bar feeder is optional
Parts catcher is optional.
Renishaw tool pre-setter is optional
