Condition:
New
Type:
Horizontal
Year:
NEW
Max. Length Of Workpiece (mm):
450
Structure:
Slant Bed Lathe
Max. Spindle Speed (r.p.m):
4000 R.p.m
Machining Capacity:
Medium Duty
Max. Weight Of Workpiece(kg):
500
Spindle Bore(mm):
56
Width Of Bed (mm):
440 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Max. Turned Length (mm):
1000
Number Of Axes:
3
Travel (X Axis)(mm):
500 Mm
Travel (Z Axis)(mm):
450 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
2300 1550 1750
Model Number:
CK46D-8
Voltage:
220V/380V
CNC Control System:
GSK
Toolpost Brand:
Hongda
Tool Post Stations:
6
Weight (KG):
3000
Warranty:
1 Year
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Retail
Key Selling Points:
High Safety Level
Showroom Location:
Russia, Argentina, Ukraine
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Pump
Max.rotation Diameter Over Bed:
450mm
Spindle Bore:
56mm
Spindle Speed:
3000RPM
Hydraulic Chuck Size:
6"
Turret Type:
8 Hydraulic Turret
Main Motor Power:
7.5kw
X- Axis Max Motion Traveling Schedule:
500mm
Z- Axis Max Motion Traveling Schedule:
450mm
Machine Type:
Slant Bed Type
Name:

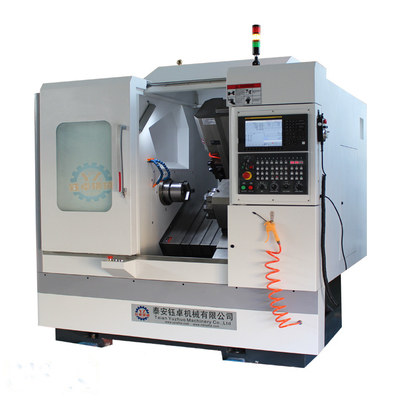

Slant Bed CNC Lathe And Mill Machine With Horizontal Type
