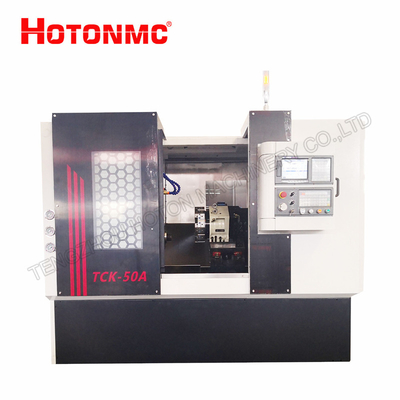

Product main features:
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
|
Model
|
Unit
|
TCK50A
|
|
Max.swing over bed
|
mm
|
560
|
|
Max.swing over cross slide
|
mm
|
260
|
|
Max.workpiece length
|
mm
|
350/500
|
|
Spindle unit
|
mm
|
200
|
|
The spindle nose(optional chuck)
|
|
A2-6
|
|
The spindle motor power
|
kw
|
7.5/11
|
|
Max.spindle speeds
|
rpm
|
3500
|
|
Spindle bore
|
mm
|
Φ66
|
|
Bar capacity
|
mm
|
55
|
|
The x/z axis screw specifications
|
|
3210/4010
|
|
The x axis limit stroke
|
mm
|
240
|
|
The z axis limit stroke
|
mm
|
400/540
|
|
The x axis motor torque
|
N.m
|
7.5/10
|
|
The z axis motor torque
|
N.m
|
7.5/10
|
|
X/z axis repeat position accuracy
|
mm
|
+/-0.003
|
|
Tool turret (optional)
|
|
100-8T/12T
|
|
Turret center height dimensions
|
mm
|
100
|
|
Hydraulic quill dia.
|
mm
|
70
|
|
Hydraulic quill taper
|
|
MT5
|
|
Hydraulic tailstock travel
|
mm
|
200/450
|
|
Machine dimensions(L*W*H)
|
mm
|
2600*1850*2000
|
|
N.W.
|
kg
|
4500
|
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
