Home /Products/CNC Lathe Machines/CNC lathe CKE61100 CNC flat bed lathe DMTG Dalian machine tool Baoji Dalian lathe cnc Z-mat neway taikan smtcl

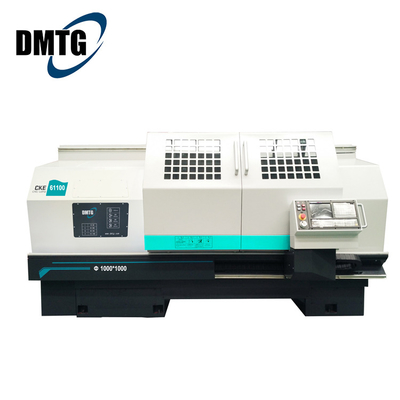

CNC lathe CKE61100 CNC flat bed lathe DMTG Dalian machine tool Baoji Dalian lathe cnc Z-mat neway taikan smtcl

1 Set
MOQ
$13,200.00(1 - 1 Sets) $13,000.00(2 - 2 Sets) $12,500.00(>=3 Sets)
Price
CNC lathe CKE61100 CNC flat bed lathe DMTG Dalian machine tool Baoji Dalian lathe cnc Z-mat neway taikan smtcl
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Max. Length Of Workpiece (mm): 1000mm
Structure: Flat Bed Lathe
Max. Spindle Speed (r.p.m): 1000 R.p.m
Machining Capacity: Heavy Duty
Spindle Bore(mm): 100
Width Of Bed (mm): 550 Mm
Spindle Motor Power(kW): 11KW
No. Of Spindles: 1
Max. Turned Length (mm): 795
Number Of Axes: 2
Travel (X Axis)(mm): 400 Mm
Travel (Z Axis)(mm): 800 Mm
Positioning Accuracy (mm): 0.018/0.024(1000)
Repeatability (X/Y/Z) (mm): 0.006/0.011(1000)
Dimension(L*W*H): 3455x2020x2000mm
Model Number: CKE61100/1000
CNC Control System: FANUC/SIEMENS/GSK
Tool Post Stations: 4 OP:6/8
Weight (KG): 5600
Warranty: 1 Year, 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points: Competitive Price
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type: Direct Markteing / Distributor
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Spindle
Max Swing Over Bed: 1000mm
Max Swing Over Cross Slide: 700mm
Chuck Size: 500mm
Max.Tool Shank Size: 32x25mm
Basic Infomation
Model Number: CKE61100/1000
Payment & Shipping Terms
Packaging Details: Steel/Wooden pallet with plastic cover/Wooden box(*Op)
Supply Ability: 6000 Set/Sets per Year
Product Description
PRODUCT DETAILS
Max.Swing diameter over bed
1000mm
Max.Swing over cross slide
700mm
Max.workpiece length
1000/1500mm
Max.cutting length
795/1245mm
Bed guideway width
550mm
Spindle motor power
11KW
system
Fanuc/GSK/Siemens
positioning accuracy X/Z
0.018/0.024(1000),0.026(1500)
Repeatability X/Z
0.006/0.011(1000),0.014(1500)
Spindle bore/nose
100/C11
Chuck size
500mm
Tool post
Vertical 4 position tool post/Horizontal 6&8 position tool post(Op)
Spindle speed ranges
10~1000(inverter-driven motor)4 range manual
Max.Tool shank size
32x25mm
Machine dimensions(LxWxH)
3455/3905x2020x2000mm
Machine weight
5600/6000kg
COMPANY PROFILE
EXHIBITION
CUSTOMER
DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
PACKING&SHIPPING
CERTIFICATIONS
FAQ
1. Is your company a factory or trading company ?
We are factory and DMTG was founded in 1935.
2. Can we pay by L/C or others ？
Yes ,you can make the payment by T/T , l/C etc.
3. What is your payment terms ?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes , we have CE certification, machine quality is guaranteed.
6. What is the warranty period ?
The warranty period is general 13 monthes after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged.
7. Can you send the service engineer to our company ?
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.
