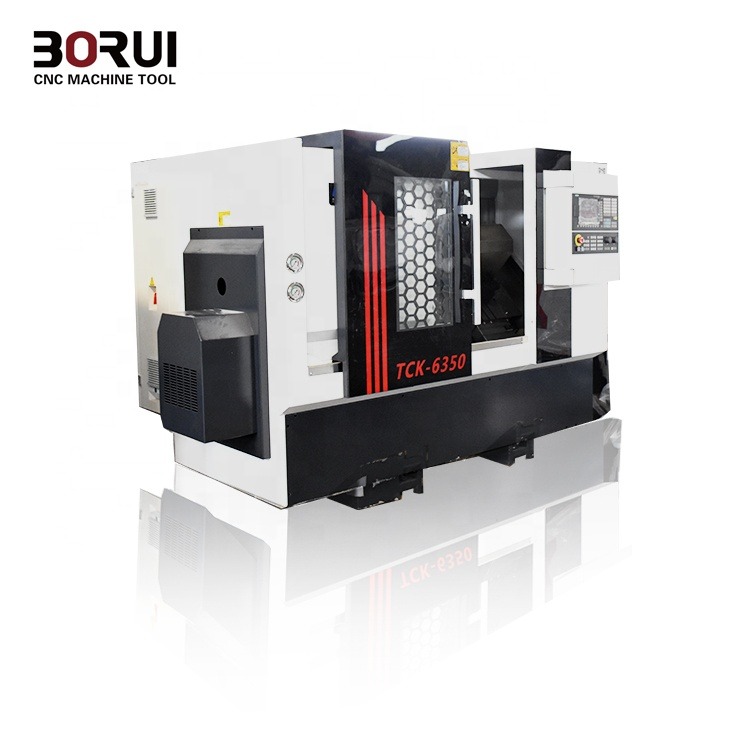

TCK6350 Live Tooling Slant Bed CNC Lathe Machine Mill Combo

1.0 Sets
MOQ
$22,000.00(1 - 1 Sets) $19,000.00(2 - 2 Sets) $16,000.00(3 - 3 Sets) $12,000.00(>=4 Sets)
Price
TCK6350 Live Tooling Slant Bed CNC Lathe Machine Mill Combo
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Year: 2020
Max. Length Of Workpiece (mm): 400 Mm
Structure: Slant Bed Lathe
Max. Spindle Speed (r.p.m): 4000 R.p.m
Machining Capacity: Heavy Duty
Spindle Bore(mm): 48 M'm
Width Of Bed (mm): 400 Mm
Spindle Motor Power(kW): 5.5
No. Of Spindles: Single
Max. Turned Length (mm): 250
Number Of Axes: 2
Travel (X Axis)(mm): 400 Mm
Travel (Z Axis)(mm): 300 Mm
Positioning Accuracy (mm): 0.01 Mm
Repeatability (X/Y/Z) (mm): 0.003
Dimension(L*W*H): 2200(2390)*1530*1780
Model Number: TCK6340
Voltage: 380
CNC Control System: GSK
Toolpost Brand: Hongda
Tool Post Stations: 4
Weight (KG): 2930
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
Key Selling Points: Competitive Price
Showroom Location: None
CNC Or Not: CNC
Machine Type: Slant Bed Cnc Lathe Machine
Name: Metal Cnc Lathe
Function: Machining Metal
Product Type: Horizontal Universal Lathe
Precision: High Precision Machine
Product Name: CNC Lathe Mechine
Control System: GSK (Optional)
Keyword: Cnc Lateh Machine
Color: Customers' Requirement
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Rom
Max. Swing Diameter (mm): 400 Mm
Certification: CE
Basic Infomation
Certification: CE
Model Number: TCK6340
Payment & Shipping Terms
Packaging Details: The machine will be packed in plywood case.
Supply Ability: 30 Set/Sets per Month
Product Description

TCK6340 TCK6340 STCK6350 Slant Bed CNC Lathe Machine
Product Description

Product description::

45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Screw pre-stretching structure
Gang type tool post
Standard configuration
Servo main motor
140mm spindle units (3500 rpm)
Taiwan linear Railway
Ball screw
gang type
Hydraulic collet
Optional configuration
5000 rpm
Taiwan spindle units
Taiwan ball screw
6/8 station Electric turret
8/12 station Hydraulic turret
Hydraulic chuck
Chip conveyor
Product main technical parameters:
SPECIFICATIONS
Units
TCK6340
TCK6340S
TCK6350
Swing over bed
mm
400
400
500
Swing over cross slide
mm
140
140
220
Distance between centers
mm
200
500
410
Spindle bore
mm
48
56
66
Spindle nose type
-
A2-5
A2-5
A2-6
Spindle speed steps
-
Stepless
Stepless
Stepless
Spindle speed range
rpm
3500
3500
3000
Turret/tool post
-
Gang type
Gang type
Gang type
Tool size
mm
20 x 20
20x 20
25 x 25
X axis travel
mm
400
400
500
Z axis travel
mm
300
500
410
X axis rapid traverse
mm/min
18000
18000
18000
Z axis rapid traverse
mm/min
18000
18000
18000
Main spindle motor
kw
5.5
5.5
7.5
Guide rail type
-
Linear rail
Linear rail
Linear rail
Machine weight
kg
2300
2500
2900
Overall dimension
mm
2200x1600x1780
2400x1600x1780
2500x1600x1890
Details Display
Recommend Products

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
