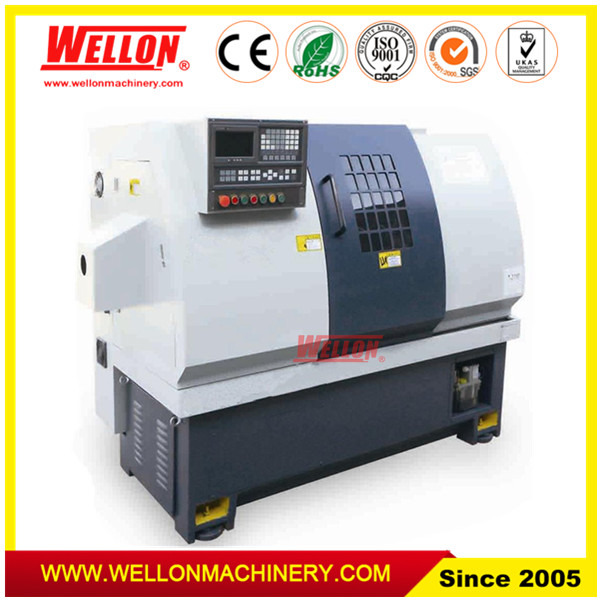

It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face. It can also turn the single and multiple threads in metric , inch and other standard.
FEATURES:
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.inverter stepless speed
Standard Accessories | Optional Accessories |
GSK980TDC or Siemens 808D NC system inverter motor 5.5kw 4 station electric turret 200 mm manual chuck manual tailstock integrated automatic lubrication system coolant system lighten system
| Fanuc 0I mate TD or KND1000Ti servo motor5.5 /7.5 kw inverter motor 7.5 kw 6 station electric turret 8″Non-through hole hydraulic chuck 8″through hole hydraulic chuck 8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) steady rest automatic feeding device spring collet |
SPECIFICATION | CK6136 | CK6136B | CK6140 |
Max. swing over bed | Φ360mm | Φ360mm | Φ400mm |
Max. swing over cross slide | Φ180mm | Φ180mm | Φ250mm |
Max. processing length | chuck 490 mm/ collet 580mm | chuck700 mm/ collet 750mm | chuck 600 mm/ collet 750mm |
Spindle bore | 48mm | 48mm | 48mm (83mm optional) |
Max. diameter of the bar | 41mm | 41mm | 41mm (65 mm optional ) |
Spindle speed | 150-2000 rpm | 150-2000 | 150-2500rpm |
Spindle nose | A2-6 | A2-6 | A2-6 (A2-8 optional ) |
Spindle motor power | 5.5kw | 5.5kw | 5.5kw |
X/Z axis position accuracy | 0.01/0.015mm | 0.01/0.015mm | 0.01/0.015mm |
X/Z axis repeatability | 0.012/0.013mm | 0.012/0.013mm | 0.012/0.013 |
X/Z axis motor torque | 4/6 N.m | 4/6 N.m | 5.5/7.5 N.m (7/10N.m optional) |
X/Z axis motor power | 1/1.5kw | 1/1.5kw | 1/1.5kw |
X/Z axis rapid feeding speed | 8/10 m/min | 8/10 m/min | 8/10 m/min |
Tool post type | 4-station electric turret | 4-station electric turret | 4-station electric turret |
Tool bar section | 20*20mm | 20*20mm | 20*20mm |
Tailstock sleeve dia. | Φ60mm | Φ60mm | Φ60mm |
Tailstock sleeve travel | 100mm | 100mm | 100mm |
Tailstock taper | MT4# | MT4# | MT4# |
N.W. | 1560kg | 1700kg | 1800kg |
Machine dimension (L*W*H) | 2000*1200*1620mm | 1860*1060*1600mm | 2200*1100*1620mm |
