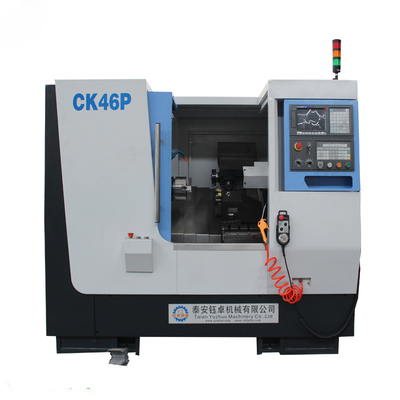

TCK360 CK46P small metal high Precision slant bed new chinese CNC lathe With Fly Cutter
|
Specification/Model |
CK46P |
|
|
Max. Swing diameter over bed |
360mm |
|
|
Max.Swing over carriage |
110mm |
|
|
Max.turning length |
330mm |
|
|
Carriage length |
600mm |
|
|
Lathe bed structure |
30° Integral inclined lathe |
|
|
Distance between carriage of spindle |
55mm |
|
|
Spindle Nose |
A2-5 |
|
|
Spindle speed range |
50-5000r/min |
|
|
Hole through spindle |
56mm |
|
|
Hole through spindle |
45mm |
|
|
Spindle(C axis)Motor |
5.5KW |
|
|
Travel |
X axis |
410mm |
|
Z axis |
370mm |
|
|
Turret type |
Gang type tool post |
|
|
Rapid speed |
X axis |
2500mm/min |
|
Z axis |
2500mm/min |
|
|
X/Y/Z Positioning accuracy |
0.006mm |
|
|
X/Y/Z repositioning accuracy |
0.003mm |
|
|
Spindle(C Axis)dividing positioning accuracy |
0.02”(arc-second) |
|
|
Spindle(C Axis)dividing repositioning accuracy |
0.006”(arc-second) |
|
|
Weight |
3000KG |
|
|
Overall dimensions |
2600x1700x1600mm |
|
Machine configurations:
CNC GSK Controller
Spindle with Taiwan hydraulic disc brake
Cooling system and Lighten system;
Automatic lubrication system;
Servo spindle
6 station electric tool post
Hydraulic chuck
Full enclosure machine guard
Machine window with safety glasses
Auto power off ,work lamp
Operation manual
Optional configuration:
SIEMENS,GSK CNC Controller
Side4 end 4 power tools
Pneumatic spring collect,
Electric tool turret
Auto bar feeder
Chip conveyor
