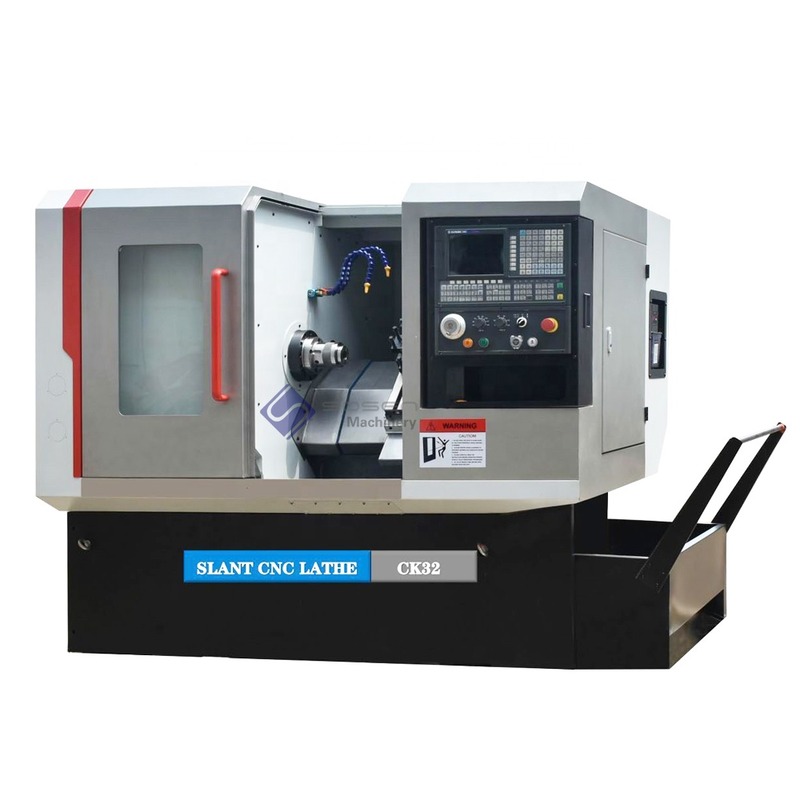

CK32x250 China automatic slant bed CNC metal lathe for sale

1.0 Sets
MOQ
CK32x250 China automatic slant bed CNC metal lathe for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Max. Length Of Workpiece (mm): 250
Structure: Slant Bed Lathe, Slant Bed Cnc Lathe
Max. Spindle Speed (r.p.m): 4000 R.p.m
Machining Capacity: Light Duty
Spindle Bore(mm): 56
Width Of Bed (mm): 0 Mm
Spindle Motor Power(kW): 4kw
No. Of Spindles: Single
Max. Turned Length (mm): 250
Number Of Axes: 2
Travel (X Axis)(mm): 350 Mm
Travel (Z Axis)(mm): 300 Mm
Dimension(L*W*H): 2600*1300*1700mm
Model Number: CK32x250
Voltage: As Your Requirement
CNC Control System: GSK
Tool Post Stations: 8, 6, 4
Weight (KG): 1500
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Key Selling Points: Automatic
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Name: CK32 China Automatic Slant Bed CNC Metal Lathe For Sale
Machine Type: CNC Lathe
Spindle Bore: 56mm
Motor: Variable Frequency Main Motor
Control System: GSK SIEMENS FANUC
Spindle Speed: 4000rpm
X/Z Axis Travel: 350/250mm
Chuck Size: 160 Mm Hydraulic Chuck
Toolpost: Gang Type Toolpost
Max. Swing Diameter (mm): 350
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Certification: CE, ISO
Basic Infomation
Certification: CE, ISO
Model Number: CK32x250
Payment & Shipping Terms
Packaging Details: plyw/case suitable for shipment by sea
Supply Ability: 20 Set/Sets per Month
Product Description
Recommend Products

Products Description
CK32x250 China automatic slant bed CNC metal lathe for sale

Features:

1. High precision slant bed CNC lathe with Taiwan screw & linear guideway. 2. Multi-function turning & milling model suitable for improving efficiency and cost saving. 3. High precision cartridge type spindle ensure the rigidity and precision of metal CNC lathe. 4. Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable. 5. Siemens, Fanuc, GSK, controller can be choice. 6. Monoblock cast iron of the whole machine ensure high rigidity.

Model
Unit
CK32x250
Max.swing over bed
mm
350
Max.swing over cross slide
mm
185
Max. processing length
mm
250
X/Z axis travel
mm
350/300
Rapid traverse speed X/Z-axis
m/min
15/15
spindle nose

A2-5
Type of guide way & screw

Taiwan linear guide way & screw
Max. spindle speed
rpm
4000
chuck size
mm
160 hydraulic chuck (optional)
spindle motor
kw
4
X/Z axis repeatability
mm
0.005
tailstock quill dia.
mm
no tailstock
quill traverse
mm
no tailstock
quill taper

no tailstock
tool post type

6 or 8 station turret (optional)
cutting tool shape size
mm
20x20
Coolant pump power
W
120
Overall dimension
mm
2600*1300*1700
Packing size
mm
2760*1700*2050mm
Net weight / Gross weight
kg
1500/1700
Details Images

Standard accessories:

GSK980TDI CNC controller
GSK feed motor and driver
Cartridge type spindle
4kw GSK servo spindle motor
hydraulic 3-jaw chuck 160mm
gang tool
work light
automatic lubrication system
automatic cooling system
Taiwan screw and linear guide rail

Optional accessories:

Siemens, FANUC, GSK controller for choice
6 or 8 station electric turret
8 station hydraulic turret
spindle collet
living tool
automatic bar-feeder
conveyor
More detailed pictures for your reference:
Other different models for your choice:
CK6130, CK6132, CK6150, CK6166
Product packaging
Company Profile
TENGZHOU SOSEN CO.,LTD located in Tengzhou city, south of Shandong Province. We are specialized in the manufacture of CNC machine center, Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto, mould, construction machinery, military industry, aviation, high speed railway and energy industry.

We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.

Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.
FAQ
Q1.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q2.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q3.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q4.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q5.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.

Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact
our SOSEN sales representative for details.

Q7.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 3 days.

Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
