Condition:
New
Type:
Horizontal
Year:
2021
Max. Length Of Workpiece (mm):
550mm
Structure:
Slant Bed Lathe
Max. Spindle Speed (r.p.m):
4000 R.p.m
Machining Capacity:
Heavy Duty
Spindle Bore(mm):
65mm
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5kw
No. Of Spindles:
Single
Max. Turned Length (mm):
500
Number Of Axes:
2
Travel (X Axis)(mm):
220 Mm
Travel (Z Axis)(mm):
550 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.008
Dimension(L*W*H):
2800*1680*2100

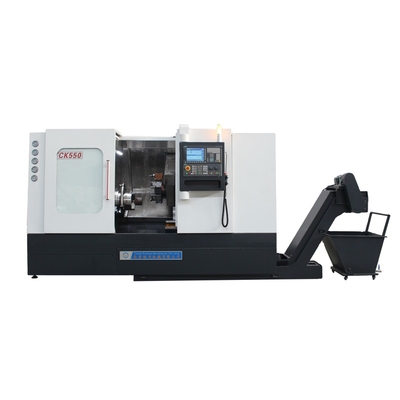

Model Number:
TCK550
Voltage:
380V 220v 415v
CNC Control System:
GSK
Tool Post Stations:
12, 8
Weight (KG):
3500
Warranty:
1 Year
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
High-accuracy
Showroom Location:
United States, Italy, France, Germany, Philippines, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Chile, Colombia, Algeria, Sri Lanka, Romania, Ukraine, Nigeria
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Motor, Gear, PLC
Name:
TCK550
Max.Swing Turning Diameter Over Bed:
540mm
Max.turning Diameter On The Slide:
270mm
Max.processing Lengh:
550mm
Spindle Bore:
65mm
Bar Capacity:
48mm
X-axis Travel:
220mm
Z-axis Travel:
550mm
Weight:
3500kg
Dimension:
2800mm*1680mm*2100mm
