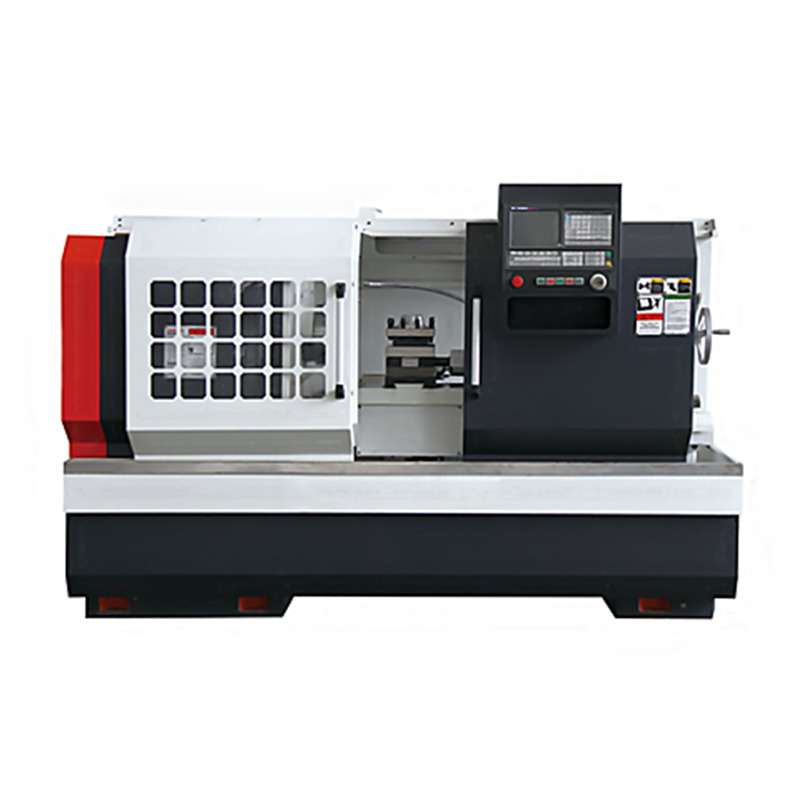

CK6140 Horizontal Metal Automatic CNC Lathe Slant Bed Machine

1.0 Sets
MOQ
CK6140 Horizontal Metal Automatic CNC Lathe Slant Bed Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Max. Length Of Workpiece (mm): 1000
Structure: Flat Bed Lathe
Max. Spindle Speed (r.p.m): 2500 R.p.m
Machining Capacity: Medium Duty
Spindle Bore(mm): 60
Width Of Bed (mm): 330 Mm
Spindle Motor Power(kW): 5.5
No. Of Spindles: 1
Number Of Axes: 2
Travel (X Axis)(mm): 250 Mm
Travel (Z Axis)(mm): 1000 Mm
Positioning Accuracy (mm): ±0.02
Repeatability (X/Y/Z) (mm): ±0.01
Model Number: CK6140X1000
Voltage: 220v
CNC Control System: GSK
Toolpost Brand: Hongda
Tool Post Stations: 4
Weight (KG): 2000
Warranty: 14 Months, 12 Months
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Construction Works
Key Selling Points: Automatic
Showroom Location: Egypt, Canada, Algeria
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Chuck Diameter: 250mm
Turret Type: Electric 4 Post Turret
Control System: GSK System
Color: Customers' Request
Chuck: 250mm
CNC Or Not: CNC Lathe Machine
Function: Machining Metal
Precision: High Precision Machine
Usage: Metal Parts Machining
Basic Infomation
Model Number: CK6140X1000
Payment & Shipping Terms
Packaging Details: steel pallet.
Supply Ability: 50 Set/Sets per Month
Product Description
Products Description
Features
1. Our casting workshop adopts lost foam to guarantee the size and precision of casting parts. 2. All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses. 3. All the guide surface are performed quenching, hardness is HRC45-52 degrees.
Standard configuration
Optional configuration
GSL980TB3 or GSK980TDC control system ,
Siemens ,Fanuc ,SYNTEC and other control system
Eletric 4 position tool post
3-jaw manual chuck
3-jaw manual chuck,
Spindle hole 80mm
Spindle hole 52,
Hydraulic chuck,
Manual tailstock
6/8 electric turret ,
Low-high two steps spindle speed
Hydraulic tailstock,
Indepedent spindle
Automatic chip conveyor



PRECISION CHUCK Standard with Manual chuck, Optional:hydraulic chuck or pneumatic chuck.


CNC CONTROL SYSTEM Standard :GSK Optional :Siemens, Fanuc,Syntec, Mitsubishi and others.



TOOL POST/ TURRE T Standard with 4 staion electric tool post ,6/8 station electric turret are optional.
Specifcation
Item
Unit
CK6140
Guideway width
mm
400
Max. swing dia. over bed
mm
Φ400
Max. swing dia. over slide
mm
Φ210
Max. workpiece length
mm
750/1000/1500/2000/3000
Max. workpiece weight
kg
300
Spindle bore
mm
Φ52(Opt.:Φ80/Φ104)
Spindle taper
/
MT6#(spindle bore Φ52);
Φ90 1:20(spindle bore Φ80);
Φ113 1:20(spindle bore Φ104)
Spindle speed
rpm
Independent spindle:100~1600;3 class gears:21~150,66~500,162~1500
Spindle head type
C6(spindle bore Φ52);D8(spindle bore Φ80,Φ104)
Chuck size
/
8’’/10’’
Spindle motor
kw
7.5
X axes travel
mm
250
Z axes travel
mm
600/850/1350/1850/2850
X/Z axes ball screw O.D.
mm
25/50
X/Z axes positioning accuracy
mm
±0.015
X/Z axes repositioning accuracy
mm
±0.006
X/Z axes rapid rate
m/min
4月6日
Toolshank size
mm
25×25
Tailstock quill travel
mm
150
Tailstock quill dia.
Φ75
Tailstock quill taper
/
MT5#
Turning accuracy
/
IT6-7
Turning roughness
μm
Ra1.6
Turning roundness
mm
0.005
Turning flatness
mm
0.025/300
Overall size
mm
2550×1550×1700(for 750mm)
N.W./G.W.
Kg
2100/2300
