Home /Products/Flat Bed CNC Lathe Machine/Hotels CNC Lathe Machine CAK6140 CK6150 CNC Cutting Lathe Flat Bed CNC Lathe

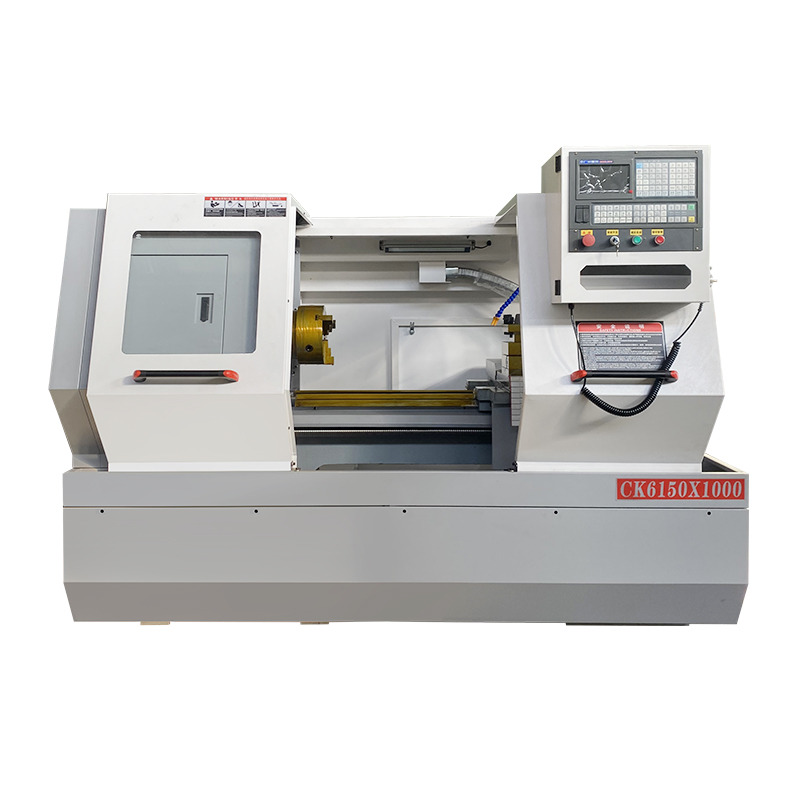

Hotels CNC Lathe Machine CAK6140 CK6150 CNC Cutting Lathe Flat Bed CNC Lathe

1 Set
MOQ
$12,500.00(1 - 2 Sets) $11,500.00(>=3 Sets)
Price
Hotels CNC Lathe Machine CAK6140 CK6150 CNC Cutting Lathe Flat Bed CNC Lathe
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Max. Length Of Workpiece (mm): 1000
Structure: Flat Bed Lathe
Max. Spindle Speed (r.p.m): 2000 R.p.m
Machining Capacity: Medium Duty
Spindle Bore(mm): 82
Width Of Bed (mm): 400 Mm
Spindle Motor Power(kW): 7.5
No. Of Spindles: Twin
Number Of Axes: 2
Travel (X Axis)(mm): 220 Mm
Travel (Z Axis)(mm): 1000 Mm
Positioning Accuracy (mm): ±0.001
Repeatability (X/Y/Z) (mm): ±0.001
Dimension(L*W*H): 3030X1600X2050
Model Number: ALCK6150
CNC Control System: GSK
Tool Post Stations: 12, 8, 10, 6, 4
Weight (KG): 2500
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Key Selling Points: Long Service Life
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Max Swing Over Bed: 500mm
Maximum Swing Over Slide: 290mm
Maximum Cutting Diameter: 500mm
Maximum Processing Length: 1000mm
X/Z Axis Maximum Stroke: 1000mm
X/Z Axis Minimum Displacement Unit: 0.001mm
Spindle Hole Diameter: 82mm
Machine Weight: 2500kg
Basic Infomation
Model Number: ALCK6150
Payment & Shipping Terms
Packaging Details: wooden box for CNC lathe
Product Description
Products Description

Super Low Price Flat Bed CNC Lathe ALCK6150X1000

Hard guide way CNC lathe is widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
Product Paramenters
Specifications
Unit
ALCK6150X1000
Maximum turning diameter of bed
mm
Φ500
Maximum cutting diameter
mm
Φ500
Maximum processing length
mm
1000
Spindle speed range
r/min
150-2000
Machine weight
mm
2500
Length×width×height
mm
3030X1600X2050
Manufacturing Technique
Company Profile
Worldwide Metal Processing Manufacture & Service Supplier.
Shandong ALLES Energy Technology co.,ltd. As a provider of CNC machine tools in the Jinan Heavy Industry Center in Shandong is committed to contributing to the industrial development of the world. We have nearly 20 years of experience in manufacturing and sales of CNC milling machines and CNC lathes, serving more than 50 countries and regions around the world, and have established.
show rooms in more than 10 countries and regions around the world. We are mainly dedicated to CNC milling machines and CNC lathes
and related CNC equipment.
Certifications
Jinpin SGS certification.
Shandong ALLES Energy Technology Co., LTD has passed the certification of Jinpin SGS, and Alibaba's Jinpin certification has three years of export experience.
Exhibition
Customer Photos
Product packaging
