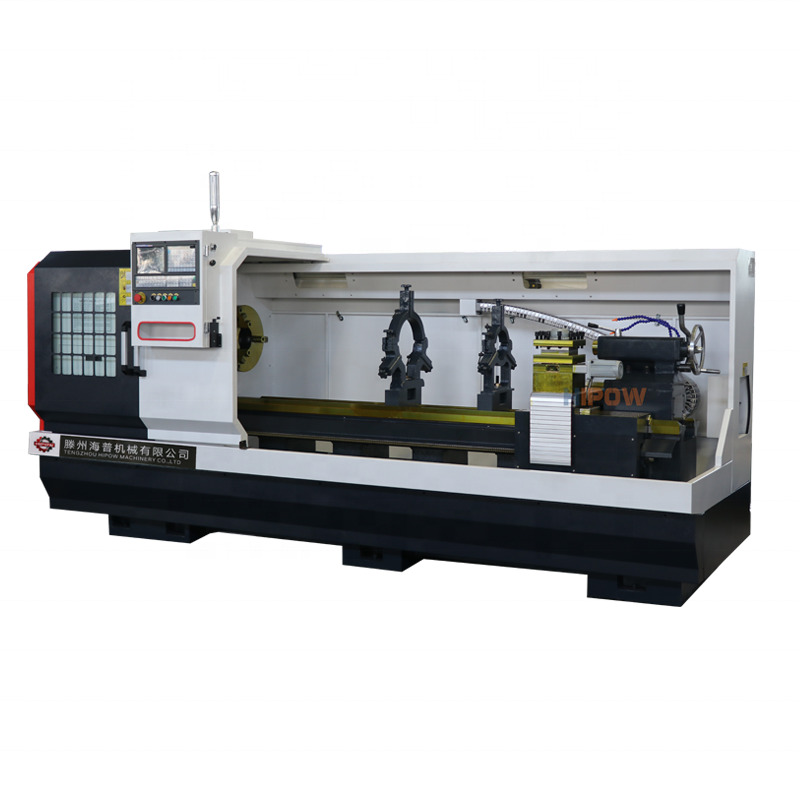

Heavy Duty flat bed Cnc Lathe machine CK6150x2000mm torno cnc |
|
Main Feature 1.Widening high stability bed 2.Two gear spindle speed,stepless in gear 3.Wider layor board 4.Intergrated automatic lubrication system
|
1. High Precision Machine Body
Strictly Processed Hardened-tempered casting machine body make the lathe perform precisely.
2. High Precision Chuck and spindle hole
1).315mmm manual chuck is standard,hydraulic 250mm/320mm precision chuck can be choosen
2). Standard spindle hole is 130mm spindlecan be choosen,Spindle Taper:MT8
3. Precision Tool Post
1). Standard electrical 4 position tool post
2). 6/8 Position electrical or hydraulic tool post can be choosen
4. Reliable Control System
1).Standard : GSK980, KND System,
2).Optional:Fanuc,Siemens,Mitsubishi and other customized system
5. Customized Tail Stock
1).Standard tail stock is manual
2).Hydraulic tail stock can be customized
|
Guide ways width |
mm |
400 |
|
Max. swing over bed |
mm |
Φ500 |
|
Max. swing over cross slide |
mm |
Φ250 |
|
Max. Processing diameter of plate |
mm |
500 |
|
Max. Work piece length |
mm |
1000 |
|
Max. processing length |
mm |
850 |
|
Spindle nose |
|
A2-11 |
|
Spindle bore |
mm |
130 mm |
|
Max. Bar capacity |
mm |
116 mm |
|
Spindle taper |
|
metric 140 |
|
Spindle speed |
rpm |
150-800 |
|
Spindle motor power |
kw |
11 |
|
X axis travel |
mm |
280 |
|
Z axis travel |
mm |
1000 |
|
X/Z axis torque |
N.m |
5/7.5 |
|
X/Z axis fast feeding speed |
m/min |
6/8 |
|
X/Z repeat-ability |
mm |
+/-0.005 |
|
Tool bar section |
mm |
25x25 |
|
Tail stock sleeve dia. |
mm |
Φ75 |
|
Tail stock sleeve travel |
mm |
150 |
|
Tail stock taper |
# |
MT5 |
|
Total rated power |
kw |
15 |
|
Total rated current |
A |
23 |
|
N.W. |
kg |
2700 |
|
Overall dimension (L*W*H) |
mm |
2650x1700x1820 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
