Condition:
New
Type:
Horizontal
Max. Length Of Workpiece (mm):
650
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
2000 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
48
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
5.5
No. Of Spindles:
Single
Number Of Axes:
2
Travel (X Axis)(mm):
280 Mm
Travel (Z Axis)(mm):
750 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
220*1160*1620
Model Number:
CK6140*750
Voltage:
220V/380V
Tool Post Stations:
8
Weight (KG):
1900
Warranty:
1 Year
Applicable Industries:
Machinery Repair Shops
Key Selling Points:
Competitive Price
Showroom Location:
None
Marketing Type:
New Product 2021
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor

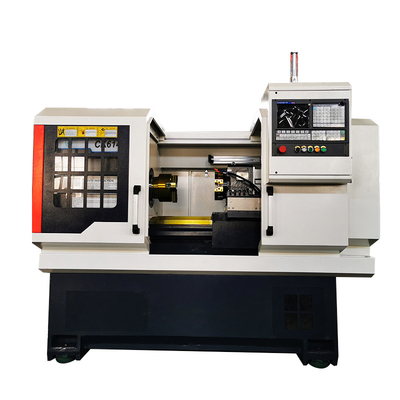

Product Name:
Flat Bed CNC Lathe
Brand:
ACR
Source Area:
Shandong,China
Sea Harbour:
Any Port In China
Packing:
Wooden Case
After-sales Service Provided:
Video Technical Support
After Warranty Service:
Video Technical Support
Local Service Location:
None
Certification:
CE ISO
