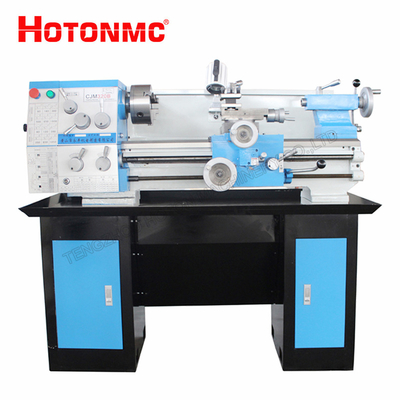

METAL SMALL LATHE MACHINE FEATURES:
1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.
|
MODEL
|
CJM320B
|
|
Max swing bed
|
320mm
|
|
Distance between centers
|
600/750mm
|
|
Max swing slide over bed
|
200mm
|
|
Spindle bore
|
38mm
|
|
Spindle taper
|
MT5
|
|
Spindle speed
|
12; 60-1600rpm
|
|
Cross slide travel
|
160mm
|
|
Top rest travel
|
100mm
|
|
Kinds of Threading
|
22
|
|
Cross feed
|
0.045-0.6mm/r
|
|
Longitudinal feed
|
0.1-1.4mm/r
|
|
Max range of tailstock quill
|
80mm
|
|
Taper of tailstocks quill
|
MT3
|
|
motor
|
750W
|
|
GW/NW
|
450kg/390kg
|
|
Package size
|
1470x770x1470mm
|
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
