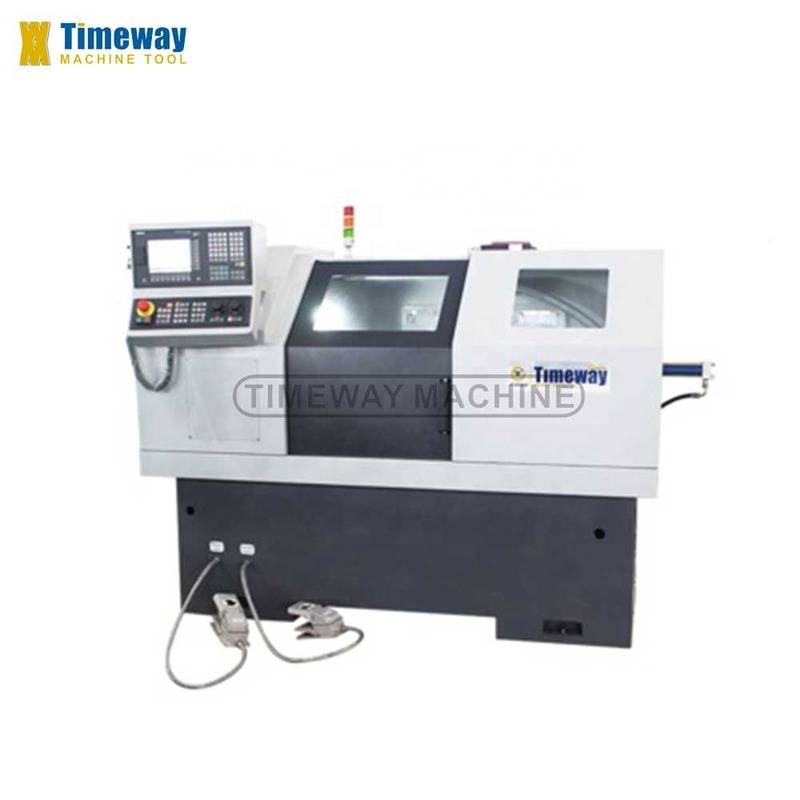

High Precision CNC Lathe
Features:
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
|
Specification |
CK-400N |
CK-500N |
|
|
Max. swing over bed |
Ø440mm |
Ø500mm |
|
|
Max. swing over carriage |
Ø210mm |
Ø295mm |
|
|
Width of bed |
405mm |
||
|
Maximum turned length |
1000mm |
1000mm/1500mm |
|
|
Max. turning length |
900mm |
||
|
Spindle nose |
A2—6 |
D8 |
|
|
Spindle bore |
Ø56mm |
Ø80mm |
|
|
Cone hole diameter and taper of spindle hole |
MT.No6 |
MT.No7 |
|
|
Steps of spindle speed(Manual) |
Variable |
3(variable within each step) |
|
|
Range of spindle speed |
450~2800 r/min |
40~165,160~660,660~2000r/min |
|
|
Rapid feed for Axis Z |
10m/min |
||
|
Rapid feed for Axis X |
8 m/min |
||
|
Max. travel of Axis Z |
920mm |
||
|
Max. travel of Axis X |
290mm |
310mm |
|
|
Min. input |
0.001 mm |
||
|
Tool post stations |
4-ways |
||
|
Tool cross section |
25×25 mm |
32×32 mm |
|
|
External diameter |
Ø75mm |
||
|
Taper of bore |
MT.No.5 |
||
|
Max. Traverse |
150mm |
||
|
X/Z motor torque |
4.7/7Nm |
7/9.5Nm |
|
|
Power of main motor |
5.5 KW |
7.5 KW |
|
|
Power of cooling pump |
90W |
||
|
Overall dimensions(L×W×H) |
2630×1400×1550mm |
2530×1400×1600mm |
|
|
Net weight |
2700kg |
2850kg |
|
Standard Accessories:
FANUC 0i mate TD CNC system, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, 4 station electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
Optional Accessories:
GSK980TD controller, 6 station electric toolpost, Hydraulic chuck, Hydraulic tailstock
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
