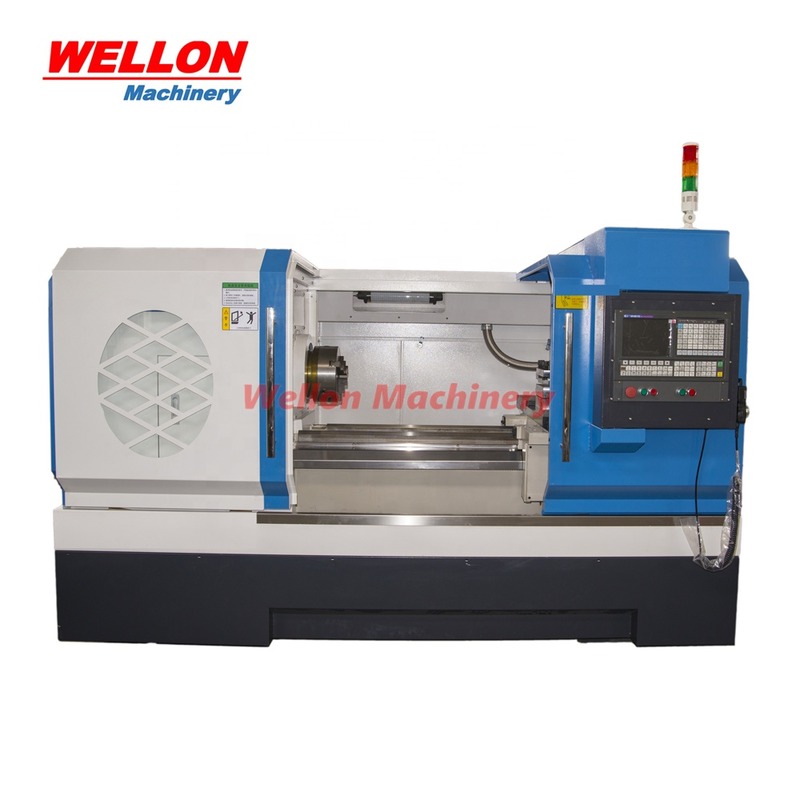

Feature:
Hardened by induction, the machine bed and carriage has a long durability.
Electric turret and gang-tools turret can be both installed.
Auto lubrication cnc machine
4-position electrical tool post as standard, 6-position is for optional selection,
Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc High efficiency and accurate processing.
The bed way has been finely grinned after ultra-tone quenching.
It is applied to various line like automobile, valve, electric tools and hardware,etc.
Technical Parameter :
| SPECIFICATION | CK400 | ||
| CAPACITY | Max.swing over bed | 400mm | |
| Max.swing over cross slide | 225mm | ||
| Center Distance | 750mm | 1000mm | |
| Bed Width | 360mm | ||
| HEADSTOCK | Spindle hole | 62mm | |
| Spindle nose | ISO-A2-6 | ||
| Spindle taper | MT6 | ||
| Spindle speed steps | Variable | ||
| Spindle speed | 200-2000rpm | ||
| CARRIAGE | X/Z axis rapid travel speed | 6000/8000mm/min | |
| Max.travel of X/Z axis | 235/650mm | 235/900mm | |
| Number of tool post | 4/6/8 | ||
| Max.size of toolshank | 25*25mm2 | ||
| ACCURACY | Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.005mm | ||
| The smallest unit | 0.001mm | ||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | |
| Taper of tailstock sleeve | MT4 | ||
| Max.travel of tailstock | 140mm | ||
| MOTOR | Main drive motor | 5.5KW | |
| Coolant pump motor | 90W | ||
| PACKING(L*W*H) | 225*150*200cm | 250*150*200cm | |
| N.W/G.W | 1700/1950kgs | 1900/2200kg | |
