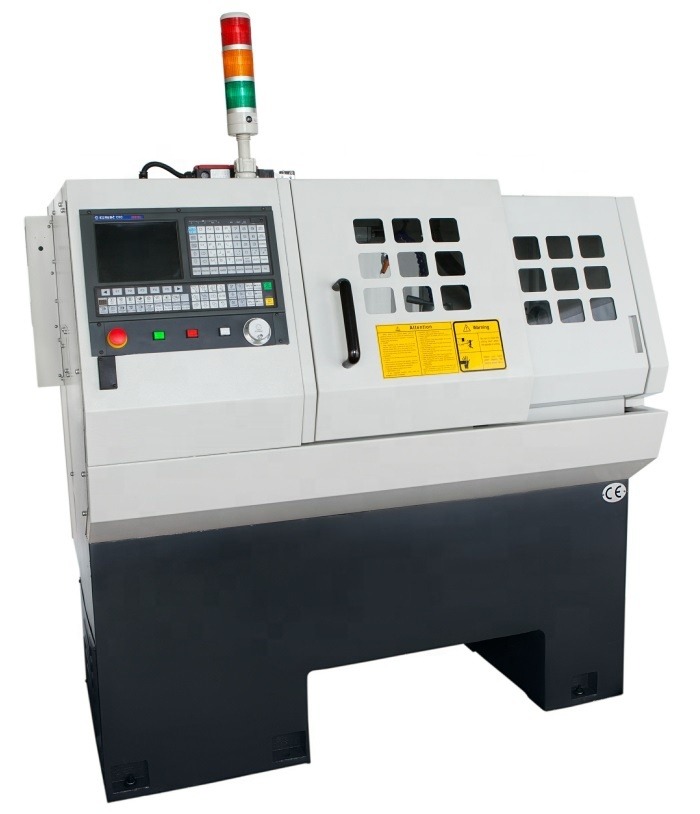

CNC Lathe Machine Price CK6130 Flat Bed CNC Turning Lathe Machine Center
Features:
This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.
1.Frequency stepless speed
2.With servo system
3.4 station electric turret
Technical Parameter :
|
SPECIFICATION |
CK6140 |
|
Max. swing over bed |
400mm |
|
Max. swing over cross slide |
250mm |
|
Max. processing length |
chuck 600 mm/ collet 700mm |
|
Guide way width |
400mm |
|
Spindle bore |
48mm |
|
Max. diameter of the bar |
41mm |
|
Spindle speed |
150-2500rpm |
|
Spindle nose |
A2-6 (A2-8 optional ) |
|
Spindle motor power |
5.5kw |
|
X/Z axis position accuracy |
0.01/0.015mm |
|
X/Z axis repeatability |
0.012/0.013 |
|
X/Z axis motor torque |
5.5/7.5 N.m (7/10N.m optional) |
|
X/Z axis motor power |
1/1.5kw |
|
X/Z axis rapid feeding speed |
8/10 m/min |
|
Tool post type |
4-station electric turret |
|
Tool bar section |
20*20mm |
|
Tailstock sleeve dia. |
Φ60mm |
|
Tailstock sleeve travel |
100mm |
|
Tailstock taper |
MT4# |
|
N.W. |
1800kg |
|
Machine dimension (L*W*H) |
2200*1100*1620mm |
|
GSK980TC3 controller |
|
4 station electric turret |
|
Manual chuck |
|
Manual tailstock |
|
integrated automatic lubrication system |
|
coolant system |
|
lighten system |
