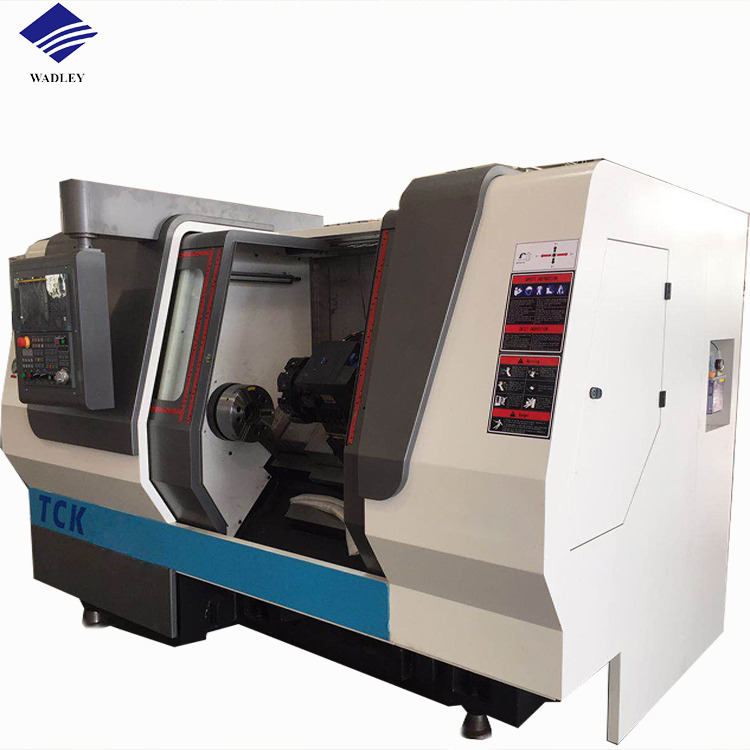

Specification | Units | TCK46A |
Max.swing over bed | mm | 460 |
Max.swing over cross slide | mm | 170 |
Max.turning length | mm | 350 |
Spindle unit | mm | Ø170 |
Spindle nose(optinal chuck) |
| A2-5/A2-6 |
Spindle motor power | kw | 5.5 |
Max.spindle speed | rpm | 3500 |
Spindle bore | mm | Ø56 |
X/Y axis lead screw specification |
| 3210/3210 |
X axis limit Travel | mm | 240 |
Z axis limit Travel | mm | 400 |
X axis motor torque | N.m | 7.5 |
Z axis motor torque | N.m | 7.5 |
X/Z axis repeatability | mm | 0.003 |
Tails tock bore | mm | 65 |
Tails tock quill travel | mm | 80 |
Tail stock travel | mm | 200 |
Tail stock taper |
| MT4 |
The bed form and inclination | ° | One -piece casting/30° |
Machine dimensions(L*W*H) | mm | 2500*1700*1710 |
Weight | kg | 2600 |
a. High processing precision and stable processing quality;
b. Multi-coordinate linkage can be performed to process parts with complex shapes;
c. When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
d. The machine tool itself has high precision and rigidity, and can choose favorable processing amount and high productivity (usually 3~5 times of ordinary machine tools);
e. The degree of automation of the machine tool is high, which can reduce the labor intensity;
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
