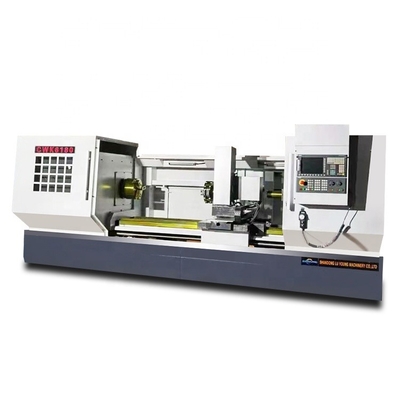

CK6180 CNC lathe machine |
|
|
Max. swing over bed (mm) |
φ800 |
|
Max. swing dia. over cross slide(mm) |
φ500 |
|
Width of guide way(mm) |
600 |
|
Max.processing length(mm) |
1500/2000/3000 |
|
Form |
no gears |
|
Range of spindle speed(r/min) |
25-850 rpm |
|
The spindle terminal structure |
C11 |
|
Diameter of spindle bore (mm) |
φ105 |
|
The taper of spindle front-end |
(Metric)120 1:20 |
|
Power of main motor (KW) |
15KW |
|
Position accuracy(mm) |
±0.007 |
|
repeated positioning accuracy(mm) |
±0.006 |
|
Processing accuracy(mm) |
IT6-IT7 |
|
Surface roughness |
Ra1.6 |
|
Sleeve diameter of tailstock (mm) |
φ100 |
|
Sleeve travel of tailstock (mm) |
250 |
|
Cone hole taper of tailstock’s sleeve |
MT6 |
|
Turret |
12 station living turret(BMT45) |
|
Y axis travel range |
160mm |
|
living tools driving motor |
2.2kw |
|
living tools speed |
3000rpm |
|
Restting accuracy (mm) |
0.01 |
|
Length of section of knife handle (mm) |
32×32 |
|
Length*width*height |
(3298/3800/4800)x1660x1690 |
|
Gross weight (Kg) |
4000/4500/5500kg |
There are 2 type of living tools
Standard Configuration :
♥- System:GSK928TD-L, X/Z axis servo motor.
♥- Manual 3-jaw chuck.
♥- 4-station electric tool post.
♥- Manual tailstock
♥- Cooling system.
♥- Lighten system.
♥- Automatic lubrication system.
Optional Configuration:
♦- CNC system: Siemens, Fanuc, KND.
♦- Hydraulic chuck/Pneumatic chuck.
♦- Hydraulic tailstock/Pneumatic tailstock.
♦- Horizontal 6-station turret/8-station turret/12 station living turret.
♦- Auto bar feeder
♦- Chip conveyor
Living turret introduce:
Feature of CK6180 Heavy duty flat bed CNC lathe and milling machine combo with 12 station living turret :
♠ Bed casting.Integrated structure of bed casting, width of guide rail 550mm, high frequency quenching 5mm, hardness 53-56 degrees, high base strength, strong suitability force cutting.
♠ Guide rail:And after two artificial aging treatments, the surface of the bed guide rail is quenched, with a hardness of HRC50, good stability and high strength.
♠ Spindle:45#steel forged spindle,feature is high speed, high precision, strong rigidity, small thermal deformation, stable operation and low noise. The single-side feed is nearly 5MM, and the processing efficiency is significantly higher than similar products.
♠ Chuck:Precision self-centering chuck, standard three-jaw manual chuck. Optional 4-jaw hydraulic chuck or pneumatic chuck
♠.Tool post:The electric four-station tool post adopts precision gear plate positioning, which has high repeat positioning accuracy
♠.Tailstock: The tailstock has a fast cam clamping device, which has high working efficiency. There is a device in the tailstock sleeve to prevent the rotation of the drill bit, which avoids damage to the taper of the inner hole of the tailstock sleeve due to misoperation of the drill bit, and effectively protects the tailstock components.
20 years' production experience
Shandong Lu Young Machinery Co, Ltd. is established in July 1996.We are located
in shandong provice.We are one of professional cnc lathe machine, cnc milling machine
and swiss lathe machine manufacturer in china.We founded our fast lathe machine
factory in 1996 in tengzhou City to produce center lathe and univesal milling machine
for over 20 years development,we build three factories.One is for cnc lathe production
one for cnc milling production.
We imported advanced production technology and R&D team from Korean in 2001 and build
our third factory for swiss lathe machine production.
We own about 500 wokers and 40 engineers, more than 5000 square meter .Our engineer team have rich experiences for equipment selection and process design,
we can give you professional solution based your workpieces fast and freely.We could product
over 1000 sets cnc machine equipment one year.Our cnc machine tools has been exported
over 40 countries and get good feedback.
♥ More than 20 years of production experience.
♥ Exported more than 40 countries.
♥ More than 300 staffs in factory.
♥ CE and ISO9001 certification .
♥ 7×24 hours online service.
Who choose Lu Young?
The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
CK6180 Heavy duty flat bed CNC lathe and milling machine combo with 12 station living turret
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
CK6180 Heavy duty flat bed CNC lathe and milling machine combo with 12 station living turret
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1.Does the CK6180 Heavy duty flat bed CNC lathe and milling machine combo with 12 station living turret can be customized?
Sure, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs
2. How to get the price of CNC lathe machine,cnc milling machine,cnc vertical machine center,manual lathe quickly?
Usually we will recommend the right model(cnc lathe machine,cnc milling machine,manual lathe ,cnc vertical machine center,swiss type cnc lathe machine, slant bed cnc lathe machine) according your drawing or pictures, we will give you our best solution,lowest price and best quality.
3. Is it complicated to install the cnc lathe machine,cnc milling machine,swiss type cnc lathe machine?How to install the machine?
Install the machine(cnc lathe machine,cnc milling machine,manual lathe ,cnc vertical machine center,swiss type cnc lathe machine, slant bed cnc lathe machine) is easy. The machine could be assembled well and when you receive the machine, you just need to debug level and add oil.If you still don’t know how to install it we will make a video to you.
4. What’s the warranty period of the machine?
One year for the whole machine(cnc lathe machine,cnc milling machine,manual lathe ,cnc vertical machine center,swiss type cnc lathe machine, slant bed cnc lathe machine), during the period if there is any damaged parts we will supply the new parts for free.
5.Is overseas service allowed?
Sure. If the machine(cnc lathe machine,cnc milling machine,manual lathe ,cnc vertical machine center,swiss type cnc lathe machine, slant bed cnc lathe machine) need oversea service.Our engineer could supply overseas service in normal condition(Force Majeure Excluded). The detail information you could contact us for free.
6. what's the payment term?
The payment of our machine((cnc lathe machine,cnc milling machine,manual lathe ,cnc vertical machine center,swiss type cnc lathe machine, slant bed cnc lathe machine) is 30% T/T as deposit, the balance should be paid before shipment. We accept L/C,T/T, Western Union,D/P,D/A and MoneyGram etc.
7. Does the machine could be customized ?
Sure, we could produce the customized machine by your detail requirements. Include install living tools, living turret, VDI turret for cnc lathe machine. Install 4th axis ,5th axis,linear guide way for our cnc milling machine.
