Home /Products/Flat Bed CNC Lathe Machine/DMTG Production of CNC lathe CKE6150 CNC Flat Bed Lathe Dalian Machine Tool Baoji Dalian Lathe Cnc Neway taikan smtcl Torno

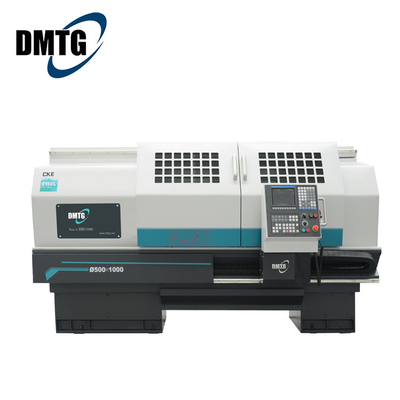

DMTG Production of CNC lathe CKE6150 CNC Flat Bed Lathe Dalian Machine Tool Baoji Dalian Lathe Cnc Neway taikan smtcl Torno

1 Set
MOQ
$15,500.00(1 - 1 Sets) $15,300.00(2 - 2 Sets) $14,800.00(>=3 Sets)
Price
DMTG Production of CNC lathe CKE6150 CNC Flat Bed Lathe Dalian Machine Tool Baoji Dalian Lathe Cnc Neway taikan smtcl Torno
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Horizontal
Max. Length Of Workpiece (mm): 750mm
Structure: Flat Bed Lathe
Max. Spindle Speed (r.p.m): 2200 R.p.m
Machining Capacity: Heavy Duty
Spindle Bore(mm): 82
Width Of Bed (mm): 400 Mm
Spindle Motor Power(kW): 7.5/11KW
No. Of Spindles: 1
Number Of Axes: 2
Travel (X Axis)(mm): 280 Mm
Travel (Z Axis)(mm): 685 Mm
Positioning Accuracy (mm): 0.018/0.021(750)
Repeatability (X/Y/Z) (mm): 0.006/0.008(750)
Dimension(L*W*H): 2580x1750x1620mm
Model Number: CKE6150
Tool Post Stations: 4 (OP:6,8)
Weight (KG): 2550
Warranty: 1 Year, 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops
Key Selling Points: Competitive Price
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type: Direct Markteing / Distributor
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Engine
Max Workpiece Length: 750mm
Max.swing Diameter Over Bed: 500mm
Max.swing Diameter Over Cross Slide: 280mm
Max Cutting Length: 680mm
Spindle Speed Ranges: 7~2200(3 Range)
Basic Infomation
Model Number: CKE6150
Payment & Shipping Terms
Packaging Details: Steel/Wooden pallet with plastic cover/Wooden box(*Op)
Product Description
PRODUCT DETAILS
Max.Swing diameter over bed
500mm
Max.Swing over cross slide
280mm
Max.workpiece length
750/1000/1500/2000mm
Max.cutting length
680/930/1430/1930mm
Bed guideway width
400mm
Spindle motor power
7.5/11KW
system
Fanuc/GSK/Siemens
positioning accuracy X/Z
0.018/0.021(750),0.024(1000),0.026(1500,2000)
Repeatability X/Z
0.006/0.008(750),0.011(1000),0.014(1500,2000)
Spindle bore/nose
82/D8
Chuck size
250mm
Tool post
Vertical 4 position tool post/Horizontal 6&8 position tool post(Op)
Spindle speed ranges
7~2200(3 range manual)/auto(OP)
Max.Tool shank size
25x25
Machine dimensions(LxWxH)
2580/2830/3330/3830x1750x1620mm
Machine weight
2550/2600/2700/2800kg
COMPANY PROFILE
EXHIBITION
CUSTOMER
DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
PACKING&SHIPPING
CERTIFICATIONS
FAQ
1. Is your company a factory or trading company ?
We are factory and DMTG was founded in 1935.
2. Can we pay by L/C or others ？
Yes ,you can make the payment by T/T , l/C etc.
3. What is your payment terms ?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes , we have CE certification, machine quality is guaranteed.
6. What is the warranty period ?
The warranty period is general 13 monthes after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged.
7. Can you send the service engineer to our company ?
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.
